SKU: 65-ERF

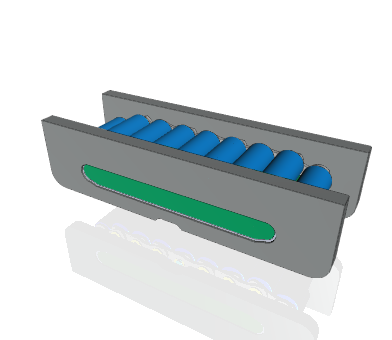

ERF Series Rollers are often used where a trunnion mount is required, where an existing “foot pad” will become the roller’s top plate, or where the load has a built-in cavity mount. Used upside down, the ERF Rollers become a heavy-duty conveyor allowing the load to slide with extremely low friction.
*Images are for representation only. Actual product may differ.
|
|
Body Dimensions |
|
Footprint |
||||
|
Capacity Metric Tons |
Length In. (mm) |
Height In. (mm) |
Width In. (mm) |
Contact Rolls
|
Roll Dia. In. (mm) |
Roll Width In. (mm) |
Weight Lbs.(kgs) |
1-ERF |
1-Ton |
6.00 (152) |
2.00 (51) |
3.58 (91) |
5 |
11/16 (17) |
2 (51) |
7 (3) |
4-ERF |
4-Tons |
8.00 (203) |
2.75 (70) |
4.44 (113) |
5 |
15/16 (24) |
2-7/16 (62) |
14 (6) |
12-ERF |
12-Tons |
10.625 (270) |
3.25 (83) |
5.625 (143) |
5 |
1-3/16 (30) |
2-3/4 (70) |
30 (14) |
30-ERF |
30-Tons |
15.00 (381) |
4.75 (121) |
7.00 (178) |
6 |
1-5/8 (41) |
3-1/2 (89) |
82 (37) |
65-ERF |
65-Tons |
21.00 (533) |
5.75 (146) |
7.375 (187) |
7 |
1-15/16 (49) |
3-5/8 (92) |
165 (75) |
100-ERF |
100-Tons |
21.00 (533) |
5.75 (146) |
7.875 (200) |
7 |
1-15/16 (49) |
3-5/8 (92) |
180 (82) |
125-ERF |
125-Tons |
21.00 (533) |
5.75 (146) |
9.875 (251) |
14 |
1-15/16 (49) |
5-1/2 (140) |
229 (104) |
