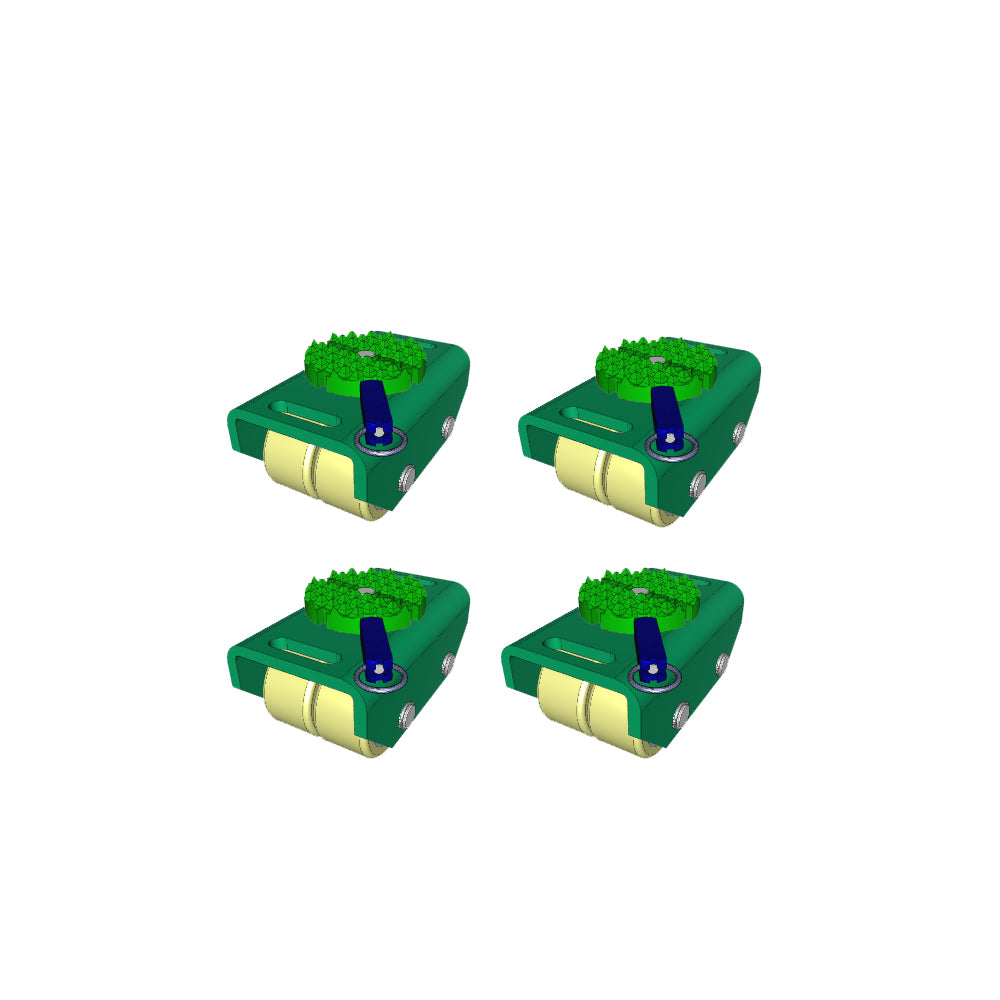

Hilman 12 Ton Swivel Diamond Top Bull Dolly Kit With Poly Wheels

SKU: KBSD-12P

Kit Capacity
Top Style
Roller Material

Description

The Hilman Bull Dolly Series is a lightweight, cost-effective solution for moving heavy equipment. Anything such as large safes, chillers, condensers and machinery can be moved safely and effectively. Kits are available in 4, 12 & 24 tons and each contain 4 Bull Dollies, 2 Handles & a Storage case. Padded Kits are also available.

Moving Types

  • Rigid for straight line moving.
  • Swivel for turning, even in the tightest of corners. All Swivel Top Styles include Locks for added control on long, straight moves.

Top Plates

  • "D", Diamond-have a spike-like steel grid able to grip into wood and provide a secure move for crated or palletized equipment.
  • "P", Padded, with built-in neoprene pad -allow some compression and provide a non-slip surface, a versatile choice for moving on less than perfect floors or for moving metal based machines.
  • "S", Smooth -ideal for mounting the rollers to equipment or as a base unit for a variety of top modifications.

 *Images are for representation only. Actual product may differ.


Technical Specifications

Product # Kit Capacity Individual Dolly Capacity Top Style Roller Material Kit Includes Weight (lbs./kgs.)
KBRD-4N 4 ton  1 ton Rigid Diamond  Nylon

(4) BRD-1N Dollies, (2) Handles, (4) Pre-load pads

75/34
KBRD-4P 4 ton  1 ton Rigid Diamond  Polyurethane (4) BRD-1P Dollies, (2) Handles, (4) Pre-load pads 75/34
KBRD-4S 4 ton  1 ton Rigid Diamond  Steel (4) BRD-1S Dollies, (2) Handles, (4) Pre-load pads 75/34
KBSP-4N 4 ton  1 ton Swivel Padded Nylon (4) BSP-1N Dollies, (2) Handles 85/39
KBSP-4P 4 ton  1 ton Swivel Padded Polyurethane (4) BSP-1P Dollies, (2) Handles 85/39
KBSP-4S 4 ton  1 ton Swivel Padded Steel (4) BSP-1S Dollies, (2) Handles 85/39
KBSD-4N 4 ton  1 ton Swivel Diamond Nylon (4) BSD-1N Dollies, (2) Handles, (4) Pre-load pads 83/38
KBSD-4P 4 ton  1 ton Swivel Diamond Polyurethane (4) BSD-1P Dollies, (2) Handles, (4) Pre-load pads 83/38
KBSD-4S 4 ton  1 ton Swivel Diamond Steel (4) BSD-1S Dollies, (2) Handles, (4) Pre-load pads 83/38
KBRD-12N 12 ton 3 ton Rigid Diamond  Nylon (4) BRD-3N Dollies, (2) Handles, (4) Pre-load pads 91/41
KBRD-12P 12 ton 3 ton Rigid Diamond  Polyurethane (4) BRD-3P Dollies, (2) Handles, (4) Pre-load pads 91/41
KBRD-12S 12 ton 3 ton Rigid Diamond  Steel (4) BRD-3S Dollies, (2) Handles, (4) Pre-load pads 91/41
KBSP-12N 12 ton 3 ton Swivel Padded Nylon (4) BSP-3N Dollies, (2) Handles 100/45
KBSP-12P 12 ton 3 ton Swivel Padded Polyurethane (4) BSP-3P Dollies, (2) Handles 100/45
KBSP-12S 12 ton 3 ton Swivel Padded Steel (4) BSP-3S Dollies, (2) Handles 100/45
KBSD-12N 12 ton 3 ton Swivel Diamond Nylon (4) BSD-3N Dollies, (2) Handles, (4) Pre-load pads 102/46
KBSD-12P 12 ton 3 ton Swivel Diamond Polyurethane (4) BSD-3P Dollies, (2) Handles, (4) Pre-load pads 102/46
KBSD-12S 12 ton 3 ton Swivel Diamond Steel (4) BSD-3S Dollies, (2) Handles, (4) Pre-load pads 102/46
KBSS-12N 12 ton 3 ton Swivel Smooth Nylon (4) BSS-3N Dollies, (2) Handles 102/46
KBSS-12P 12 ton 3 ton Swivel Smooth Polyurethane (4) BSS-3P Dollies, (2) Handles 102/46
KBSS-12S 12 ton 3 ton Swivel Smooth Steel (4) BSS-3S Dollies, (2) Handles 102/46
KBRD-24N 24 ton 6 ton Rigid Diamond  Nylon (4) BRD-6N Dollies, (2) Handles, (4) Pre-load pads 196/89
KBRD-24P 24 ton 6 ton Rigid Diamond  Polyurethane (4) BRD-6P Dollies, (2) Handles, (4) Pre-load pads 196/89
KBRD-24S 24 ton 6 ton Rigid Diamond  Steel (4) BRD-6S Dollies, (2) Handles, (4) Pre-load pads 196/89
KBSP-24N 24 ton 6 ton Swivel Padded Nylon (4) BSP-6N Dollies, (2) Handles 216/98
KBSP-24P 24 ton 6 ton Swivel Padded Polyurethane (4) BSP-6P Dollies, (2) Handles 216/98
KBSP-24S 24 ton 6 ton Swivel Padded Steel (4) BSP-6S Dollies, (2) Handles 216/98
KBSD-24N 24 ton 6 ton Swivel Diamond Nylon (4) BSD-6N Dollies, (2) Handles, (4) Pre-load pads 216/98
KBSD-24P 24 ton 6 ton Swivel Diamond Polyurethane (4) BSD-6P Dollies, (2) Handles, (4) Pre-load pads 216/98
KBSD-24S 24 ton 6 ton Swivel Diamond Steel (4) BSD-6S Dollies, (2) Handles, (4) Pre-load pads 216/98
KBSS-24N 24 ton 6 ton Swivel Smooth Nylon (4) BSS-6N Dollies, (2) Handles 213/97
KBSS-24P 24 ton 6 ton Swivel Smooth Polyurethane (4) BSS-6P Dollies, (2) Handles 213/97
KBSS-24S 24 ton 6 ton Swivel Smooth Steel (4) BSS-6S Dollies, (2) Handles 213/97
