CAD Format:
Download

ERS Individual Attachments

SKU: T-3.75-LD

Capacity
Top Style
Type

Description

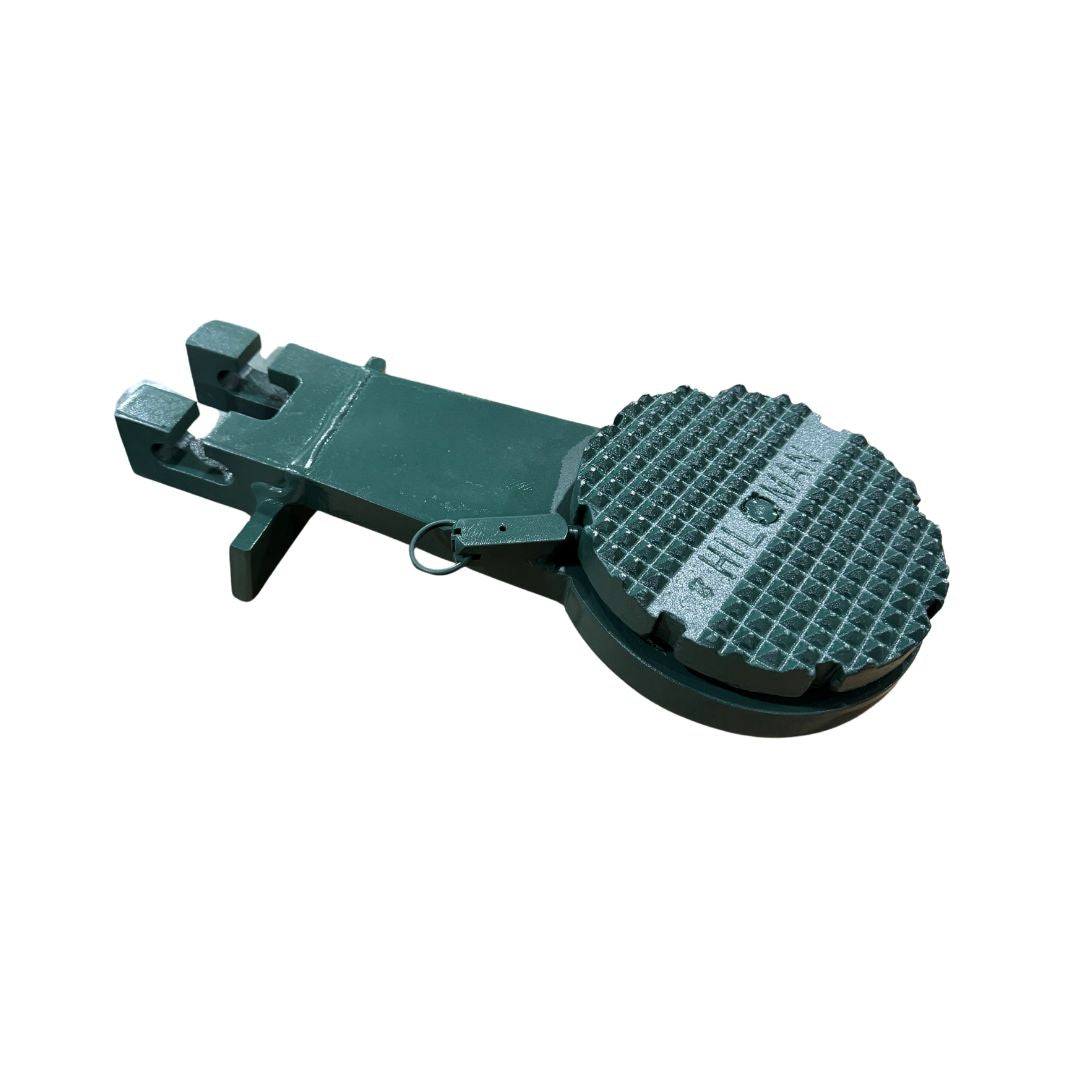

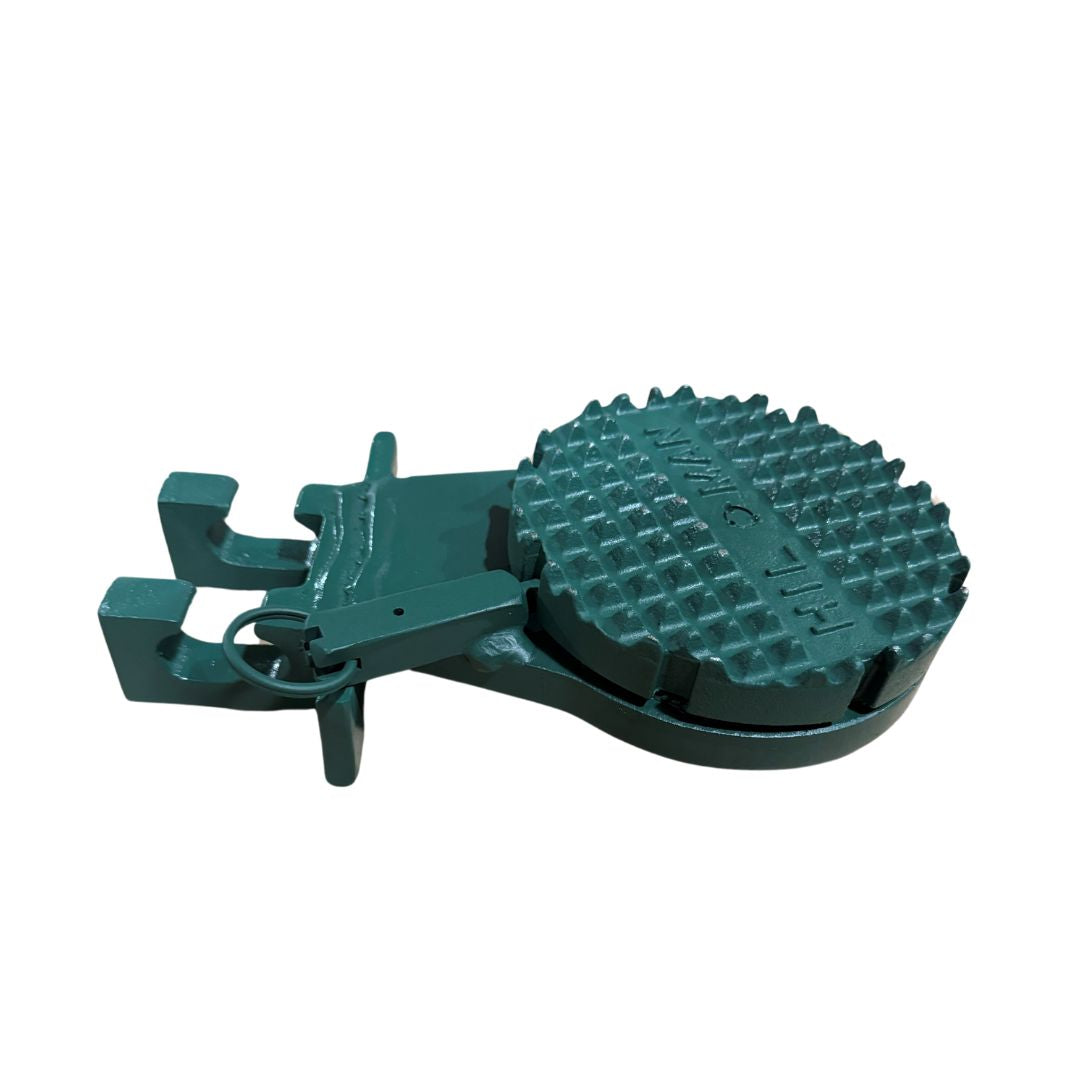

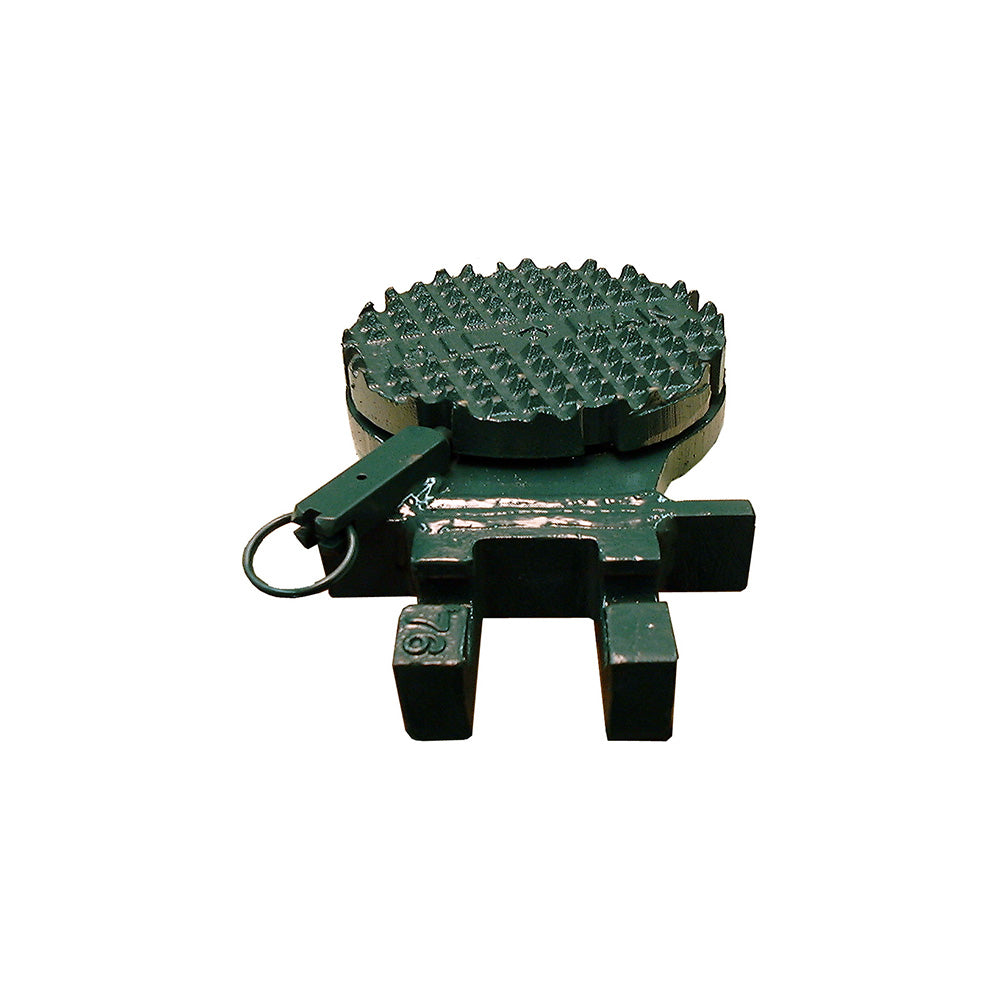

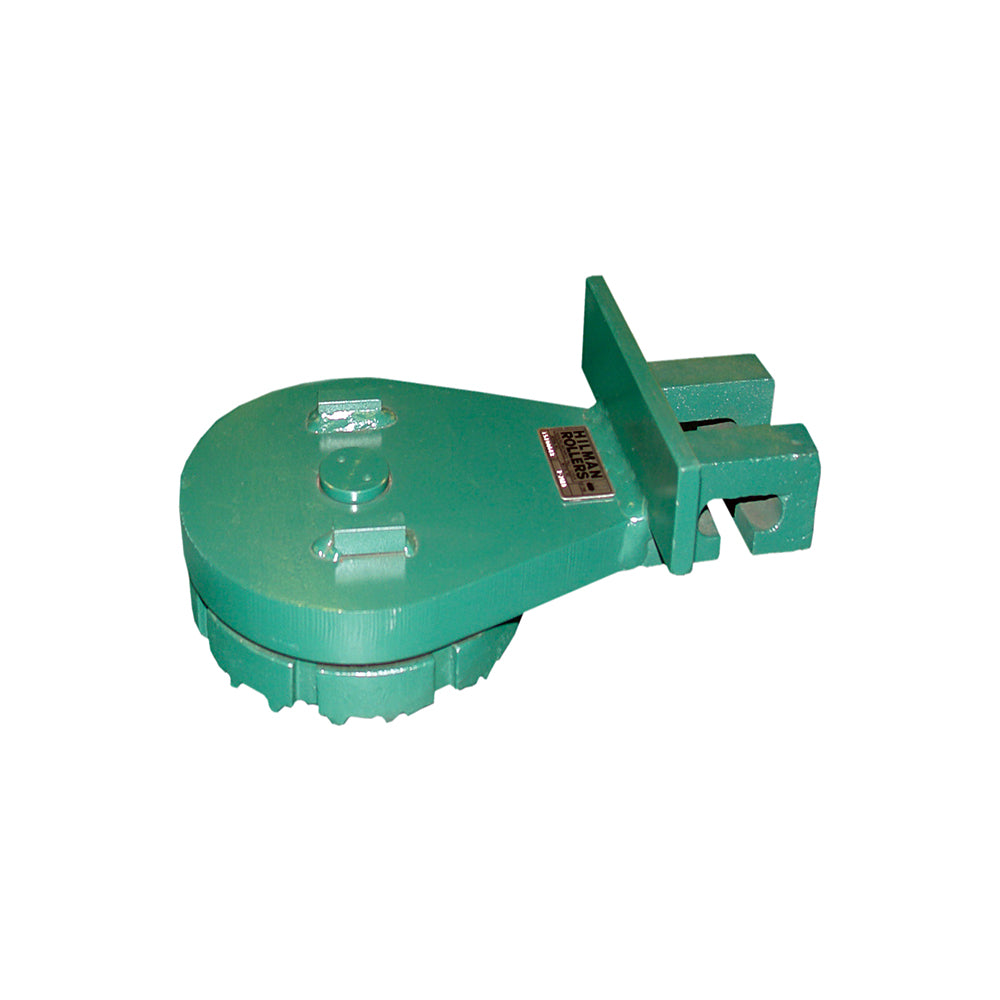

For the ultimate versatility, each Hilman ERS Series Roller can be outfitted with an ERS Swivel Attachment.  Attachments add minimal height to the basic roller, while providing the ability to make turns without jacking the equipment.

Features

  • Chrome steel ball bearings for smooth operation

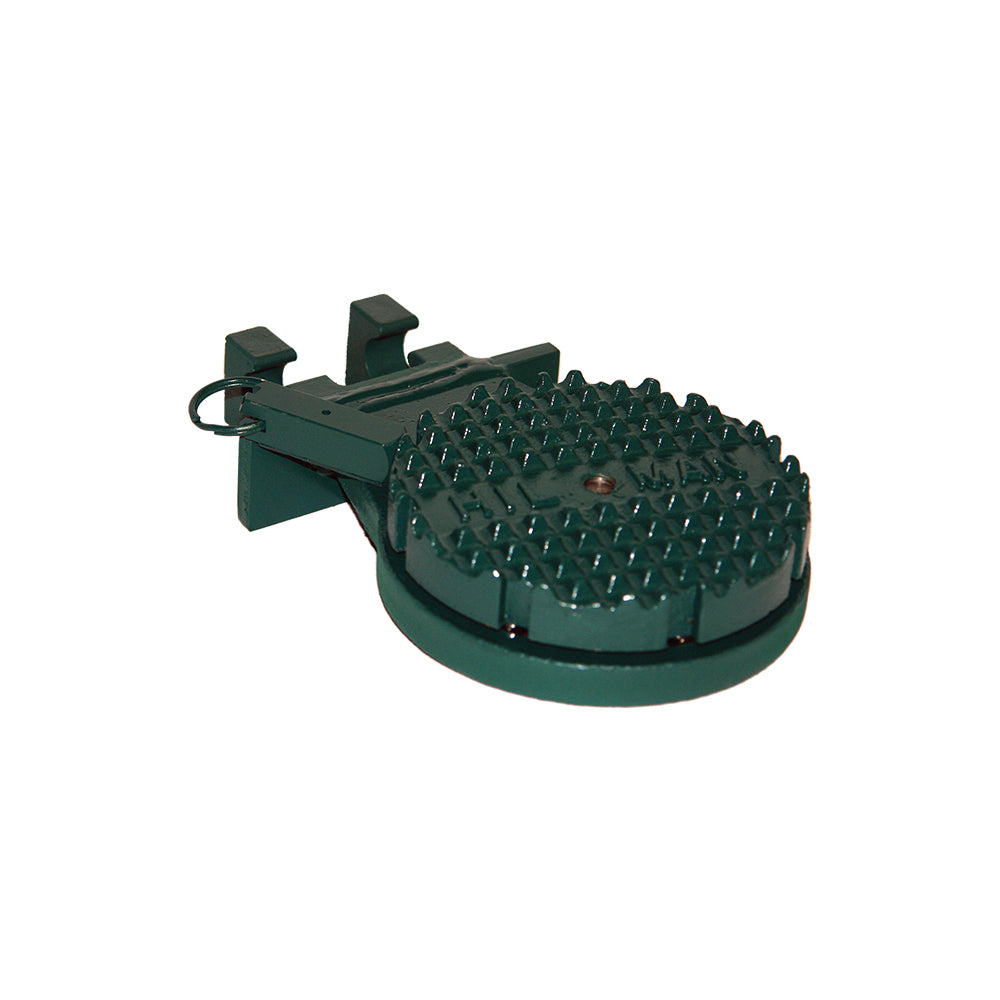

  • Diamond steel or Padded tops and swivel locking devices

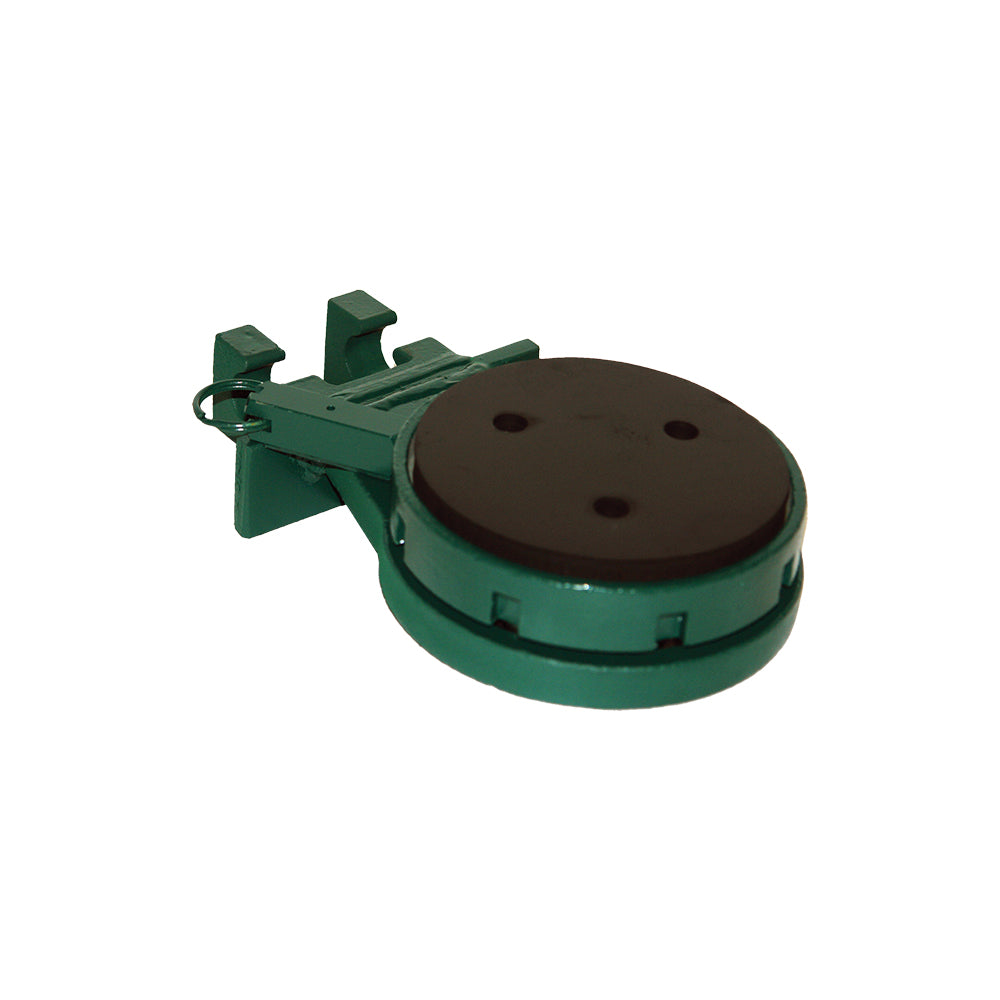

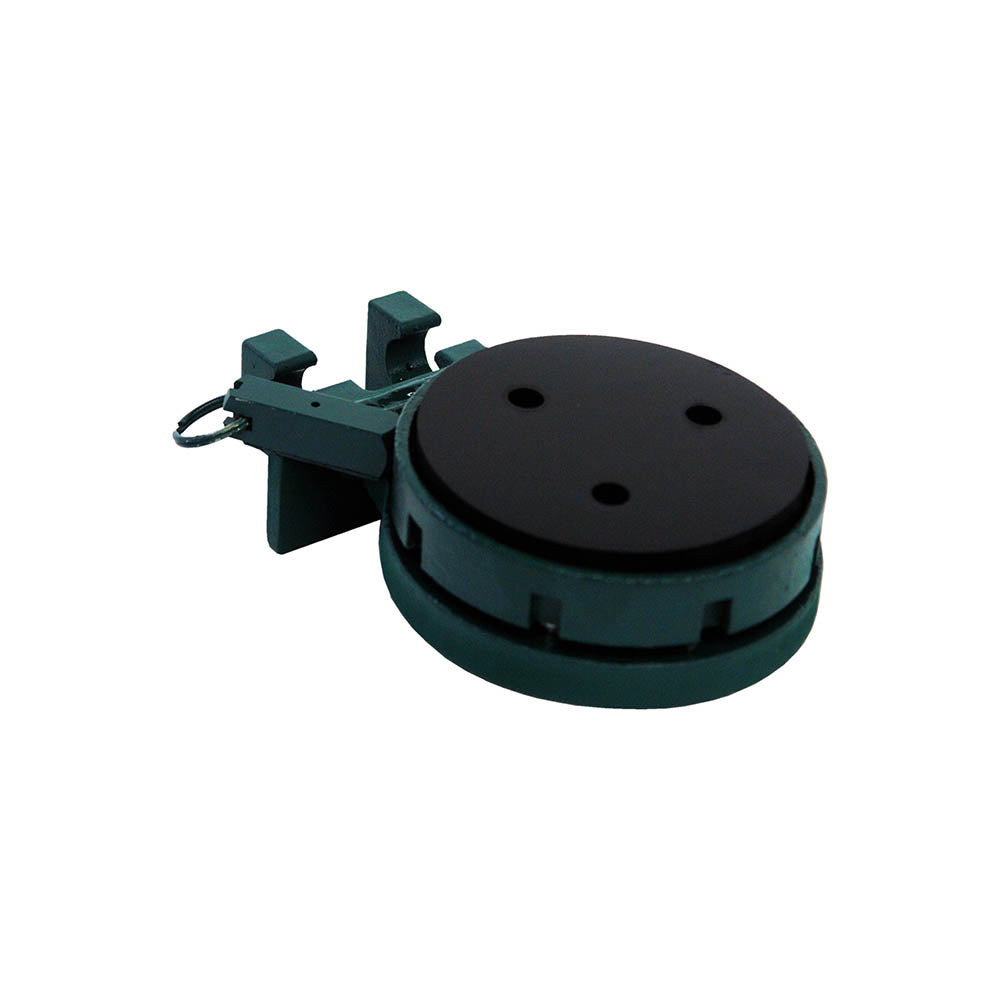

  • Padded attachments help minimize metal-to-metal slippage

Height equalizers, which increase the height of the roller to that of a roller without a swivel attachment, are also available for each roller size.

*Images are for representation only. Actual product may differ.


Technical Specifications

Click here to View Full Specs

Swivel Locking Diamond Grip Top Swivel Locking Padded Top Individual Product # Length mm Attachment Width mm (P) Style Height (attachment plus roller) mm Diamond Style height mm Weight kg
T-3.75-LD T-3.75-LP 3.75-ERS 10 3/4 273 5 7/8 149 4 11/16 119 4  7/16 113 13 6
T-5-LD T-5-LP 5-ERS 10 3/4 273 5 7/8 149 4 11/16 119 4  7/16 113 13 6
T-10-LD T-10-LP 10-ERS 12 1/2 318 5 7/8 149 5  5/16 135 5  1/16 129 14 6
T-12.5-LD T-12.5-LP 12.5-ERS 12 1/2 318 5 7/8 149 5  5/16 135 5  1/16 129 14 6
T-25-LD T-25-LP 25-ERS 18 19/32 472 8 203 7 15/16 202 7  1/16 179 42 19
T-65-LD T-65-LP 65-ERS 25 3/8 645 8 3/8 213 8 13/16 224 7 15/16 202 47 21
T-100-LD T-100-LP 100-ERS 25 3/8 645 8 3/8 213 8 13/16 224 7 15/16 202 47 21
