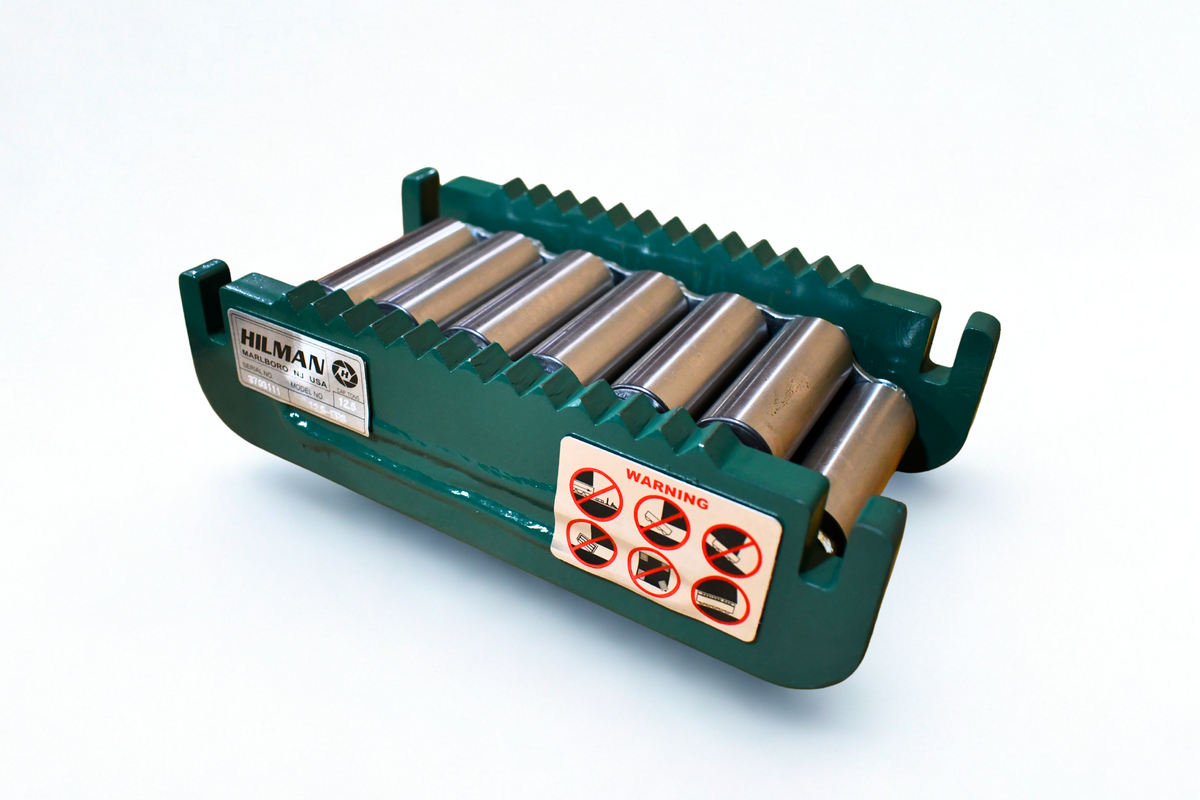

Hilman 12.5-ERS Low Profile Heavy Moving Skates 12.5 Ton

SKU: 12.5-ERS

Capacity (Metric Tons)
Top Style
Optional Banjo Top

Description

Two-piece design features base roller plus detachable swivel attachment. Especially valuable for a task requiring a roller with low clearance. The Roller base is designed for straight line moving. Attachments with swivel-locking capabilities can be used for easy turning.

Features

  • Lowest Height-Open Top allows for the lowest height. The roller height can be changed and adjusted by removing the swivel attachments.
  • Firm Grip- The serrated side plates enable the Roller to maintain a firm grip on moving loads.

Versatile Attachments

Optional swivel attachments, manually situated on the Rollers enhance maneuverability and add minimal height to the basic roller, providing the ability to make turns without jacking the equipment.  Attachments come with Diamond Steel or Padded Tops and all have swivel-locking capability. Padded attachments help minimize metal to metal slippage.

Rollers can be used with two to four attachments depending on the amount of maneuvering the project calls for.  2 rollers can also be used with one or 3 swivels.

*Images are for representation only. Actual product may differ.


Technical Specifications

Click to View Full Specs

Hilman Part # Load Capacity (Tons) Length (in) mm Width (in) mm Height (in) mm Weight (lbs/kg) Contact rolls
3.75-ERS 3.75 8.625 219 4.437 113 2.75 70 15/7 5
5-ERS 5 8.625 219 5.312 135 2.75 70 20/9 5
10-ERS 10 10.375 264 5.187 132 3.375 86 29/13 5
12.5-ERS 12.5 10.375 264 5.625 143 3.375 86 31/14 5
25-ERS 25 15.75 400 7.25 184 4.75 121 79/36 5
65-ERS 65 23 584 7.375 187 5.625 143 156/71 7
100-ERS 100 23 584 7.875 200 5.625 143 165/75 7
