Hilman ERS 20 Ton Kit with Swivel Locking Diamond Detachable Tops

SKU: KRS-20-ERSD

Capacity
Top Style
Type

Description

Two-piece design features base roller plus detachable swivel attachment. Especially valuable for a task requiring a roller with low clearance. The Roller base is designed for straight line moving. Attachments with swivel-locking capabilities can be used for easy turning.

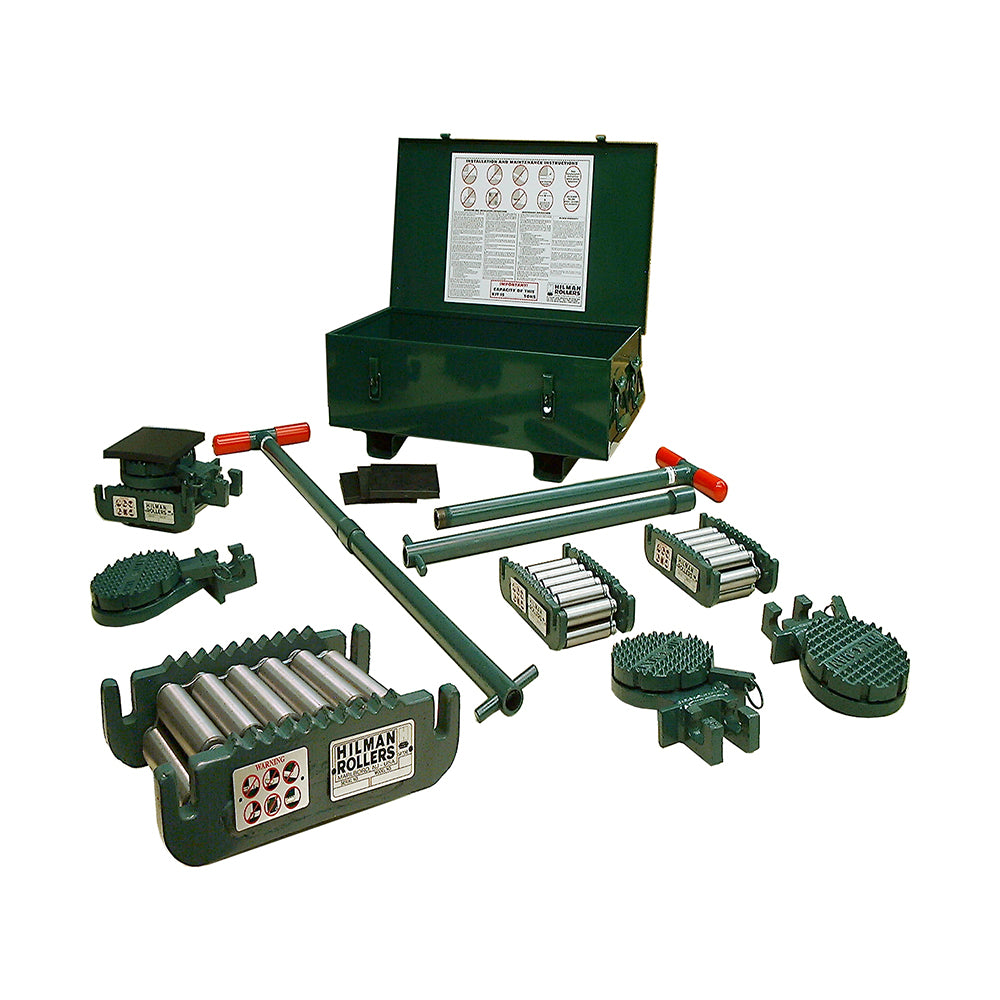

All Kits include (4) Rollers, (4) Swivel Locking Attachments with Diamond Steel Tops, (4) Preload Pads and 2 Steering Handles.  The kit handles are a two piece knockdown style to fit into the steel case.

*Images are for representation only. Actual product may differ.


Technical Specifications

Click here to View Full Specs

Hilman Part # KIT Load Capacity (Tons) INDIVIDUAL ROLLER (TONS) Skate Height: with top (in) Skate Height: without tope (in) Width (in) Length (in) Set Weight (lbs/kg) Includes
KRS-20-ERSD 20 5 4.7 2.8 5.3 8.6 201/91 (4) 5-ERS Rollers, (4) T-5-LD Swivel Locking Diamond Attachments, (4) P-1 Preload Pads, (2) KDH48E Kit Size Handle
