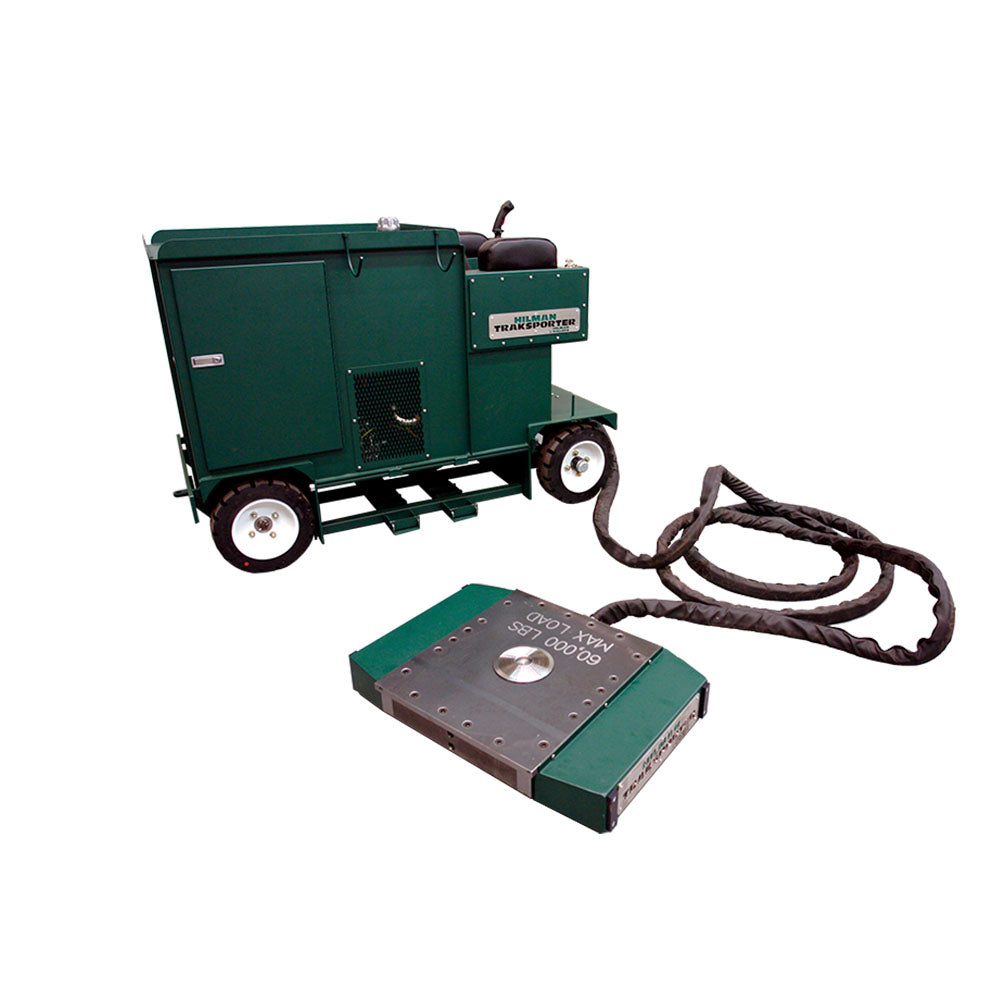

The Hilman Traksporter is a self-propelled crawler system designed to move heavy machinery or other heavy objects safely, easily and efficiently while not damaging the floor surface.

Available in 50, 75 and 100 Ton Capacities.

Powered 3-Point Moving System

The Hilman Traksporter integrates a three point moving system where the front steerable unit is fully powered and operated by remote control.  This design offers accuracy, ease of use and safety.


The Crawler is a remote controlled steering and drive mechanism that is used to direct the movement of whatever is being moved.

  • A turntable with aggressive anti-slip pattern on top and bearings underneath allow the crawler to rotate under the machine being moved.
  • Two steel tracks controlled via joystick on the remote control allow the crawler to push, pull and turn 360 degrees.
  • Precision-made steel track pads will not damage smooth concrete floors.
  • Can be used in conjunction with a pair of unpowered rear dollies that allow the tracks to follow the contour of the concrete and help distribute the load evenly.
  • Optional 55 Ton Turtleback has a direct load capacity of 110,000 lbs. and overall capacity of 100 tons.
  • Crawler unit measures 26″ L x 31″ W x 6″H
The Power Unit provides power to the Crawler.  It is also used to store the Crawler when not in use.
  • Has 30-foot long umbilical that houses the hydraulic lines to the Crawler.
  • Runs on a 23hp LPG powered Kubota engine that can also be custom designed to run on a 25hp electric motor.
  • Optional Tool Cart is available that can supply a full complement of accessories such as jacks, pumps, hoses, wedges, pads, cylinders, etc.
  • Power unit measures 65″ L x 30″ W x 44″ H

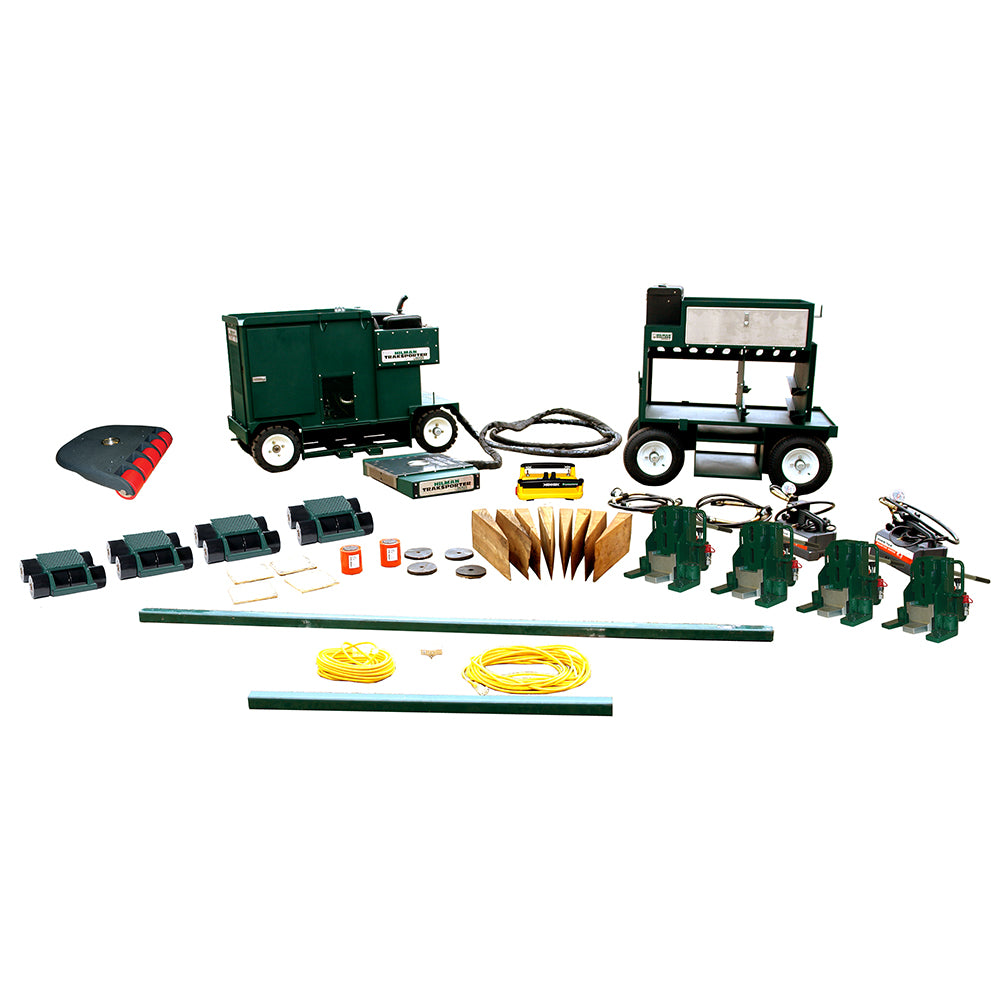

Packages Available

The Traksporter comes in a variety of packages that provide you with all the tools needed for an easy move.  Additional options such as trailers, custom jacking systems and complete tool carts are also available.

*Images are for representation only. Actual product may differ.
