SKU: TG-F7.5N

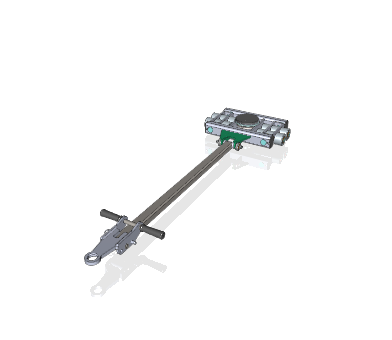

The Hilman Tri-Glide Individual Dollies are available with Polyurethane, Nylon or Steel wheels.
Front Units come with one steerable dolly and a multi-functional handle. The front unit has a 360-degree turntable with a non-slip swivel pad for easy turning. The handle comes with padded grips and a tow latch for smaller models.
*Images are for representation only. Actual product may differ.
| Hilman Part # | Capacity | Roller Type | Height (w/o pad): | Height (w/pad): | Width (in.) | Weight (lbs) |
| TG-F5P | 5 ton | Polyurethane | 4" (102mm) | 4.5" (114mm) | 17.875 | 99 |
| TG-F7.5P | 7.5 ton | Polyurethane | 4" (102mm) | 4.5" (114mm) | 22.6875 | 113 |
| TG-F10P | 10 ton | Polyurethane | 4" (102mm) | 4.5" (114mm) | 26.6875 | 120 |
| TG-F12P | 12 ton | Polyurethane | 5.25" (133mm) | 5.5" (140mm) | 26.875 | 249 |
| TG-F20P | 20 ton | Polyurethane | 5.25" (133mm) | 5.5" (140mm) | 39.1875 | 286 |
| TG-F30PA | 30 ton | Polyurethane | 7.00" (178mm) | 7.75" (197mm) | 48.0625 | 603 |
| TG-F40PA | 40 ton | Polyurethane | 7.00" (178mm) | 7.75" (197mm) | 56.0625 | 667 |
| TG-F5N | 5 ton | Nylon | 4" (102mm) | 4.5" (114mm) | 17.875 | 96 |
| TG-F7.5N | 7.5 ton | Nylon | 4" (102mm) | 4.5" (114mm) | 22.6875 | 106 |
| TG-F10N | 10 ton | Nylon | 4" (102mm) | 4.5" (114mm) | 26.6875 | 113 |
| TG-F5S | 5 ton | Steel | 4" (102mm) | 4.5" (114mm) | 17.875 | 115 |
| TG-F7.5S | 7.5 ton | Steel | 4" (102mm) | 4.5" (114mm) | 22.6875 | 145 |
| TG-F10S | 10 ton | Steel | 4" (102mm) | 4.5" (114mm) | 26.6875 | 151 |
CAD Files
